[0001]
The present invention relates to apparatus and methods of producing an integral three-dimensional object formed from individually contoured laminations of the same or gradually varying shape.
-
[0002]
The proceedings of the twenty-fifth International Machine Tool Design and Research Conference in Birmingham pages 22-24 April 1985, as published by MacMillian Publishers Ltd, contains a paper entitled "Laser cut sheet laminated forming dies by diffusion bonding" written by T Nakagawa et al.
-
[0003]
This paper describes a manufacturing system to produce 3-D forming dies by laminating laser cut sheets with suitable profiles. The steps involved in this system are the generation of a 3-D curved surface, the determination of the number of sheets and the profiles on each of them forming the surface, laser beam cutting the sheets into cross section shape, laminating them to form the die surfaces with steps and solid state bonding of sheets followed by CNC milling and polishing.
-
[0004]
This proposed system of manufacturing an arbitrary three-dimensional surface by laminating laser cut sheets is postulated as being able to provide an efficient method of making even single piece of complex shaped component quickly and economically. Sheet metal forming, metal casting and plastic molding dies are typical examples of such complex components.
-
[0005]
The various steps involved include especially the technique of solid state bonding which will permit the design of any arbitrary cavity shape and channels for circulating cooling water. The structure may be a composite structure which means that a high strength material used only for those portions where it is needed.
-
[0006]
The process involves heating laminated sheets in a protective atmosphere, followed by shifting the assembly to a hydraulic press and keeping it pressed for a few seconds in air. This results in a very good bonding among laminates.
-
[0007]
Because method involves diffusion bonding it requires an expensive hot press. The process is also time consuming.
-
[0008]
It is an object of the present invention to provide an improved method and apparatus for producing an integral three-dimensional object.
-
[0009]
According to the present invention there is provided apparatus for producing an integral three-dimensional object from computer data, the apparatus comprising a storage station for storing and supplying sheet-like material to form said object, a computer operable to generate data defining a series of planar shapes corresponding to a succession of parallel sections taken progressively through said object at spaced intervals, a shaper for receiving material from said storage station and responsive to said data from said computer to convert said material into a plurality of laminations each having shapes corresponding to said planar shapes, a stacker for receiving said laminations from said shaper and arranged to stack said laminations successively one on top of the other in an order corresponding to the order of succession of said planar sections, locating means cooperating with the stacker for ensuring the correct attitude of each lamination in said stack and bonding means for bonding said laminations together to form said three-dimensional objects characterised in that said sheet like material is a bimaterial in which one material is the primary material for the lamination and the other material is a bonding material for achieving an integral bond between laminations when subject to heat and/or pressure, and further characterised in that said bonding means includes pressure and/or heating means for effecting an integrated bond between adjacent laminations and control means responsive to the stacker for actuating said pressure and/or heating means to integrally bond each lamination upon being stacked to the immediately adjacent lamination during an interval before the next successive lamination is stacked thereon.
-
[0010]
According to the present invention there is further provided a method for producing an integral three-dimensional object from computer data, the method comprising steps of supplying a sheet-like material to form said object, generating data defining a series of planar shapes corresponding to a succession of parallel sections taken progressively through said object at spaced intervals, shaping said material in accordance with said data to convert the material into a plurality of laminations each coated with said bonding component and having shapes corresponding to said shapes, stacking said laminations successively one on top of the other in an order corresponding to the order of successions of said planar sections, locating each lamination as it is stacked and boding said laminations together to form said three-dimensional object characterised in that said sheet-like material is a bimaterial in which one material is the primary material for the lamination and the other material is a bonding material for achieving an integral bond between laminations when subject to heat and/or pressure and further characterised by the step of applying heat and/or pressure to integrally bond each lamination upon being stacked to the immediately adjacent lamination (26) during an interval before the next successive lamination is stacked thereon.
-
[0011]
A method and apparatus for producing an integral three dimensional object and embodying the invention, will now be described, by way of example, with reference to the accompanying diagrammatic drawings, in which:

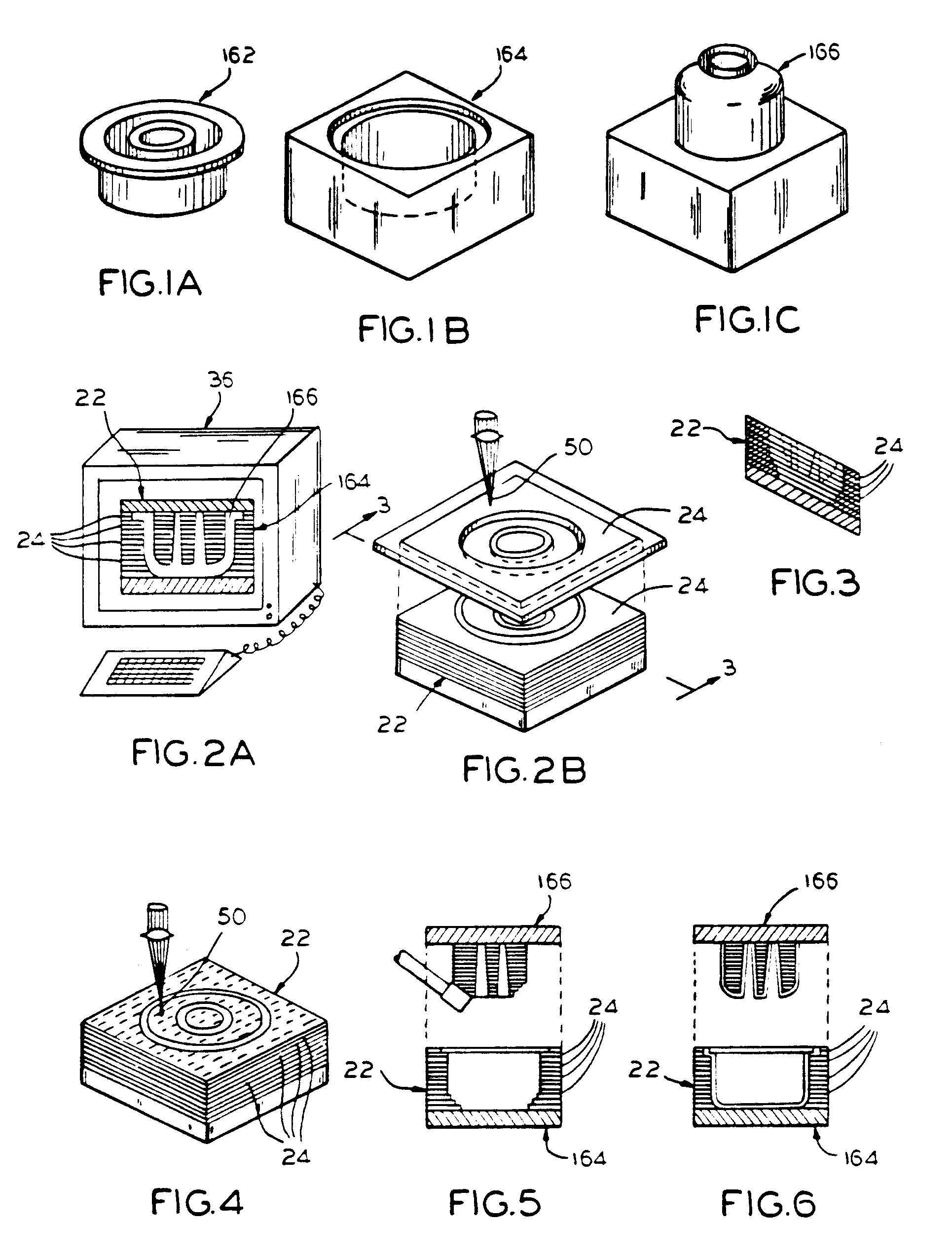

- Fig. 1A is a perspective view of a product part to be made with a die or mold formed in accordance with the present invention;
- Fig. 1B is a perspective view of one-half of a die or mold to be used to manufacture the product part of Fig. 1A;
- Fig. 1C is a perspective view of the other half of a die or mold to be used to manufacture the product part of Fig. 1A;
- Fig. 2A is a perspective view of a computer assisted drafting system for entering data concerning the product part and die or mold illustrated in Figs. 1A-1C;
- Fig. 2B is a perspective view illustrating the formation of individually contoured laminations for a three-dimensional object such as the die or mold illustrated in Figs. 1B and 1C;
- Fig. 3 is a cross-sectional view taken on the line 3-3 of Fig. 2B;
- Fig. 4 is a perspective view illustrating the assembly of individually contoured laminations into an integral three-dimensional object such as the die or mold illustrated in Figs. 1B and 1C;
- Fig. 5 is a cross-sectional view schematically illustrating removing roughness from an integral three-dimensional object formed from individually contoured laminations such as the die or mold illustrated in Figs. 1B and 1C;
- Fig. 6 is a cross-sectional view schematically illustrating plating an integral three-dimensional object formed from individually contoured laminations such as the die or mold illustrated in Figs. 1B and 1C;
- Fig. 7 is a perspective view of an apparatus for forming an integral three-dimensional object from laminations in accordance with the present invention;
- Fig. 8 is a perspective view of an alternative embodiment of an apparatus for forming an integral three-dimensional object from laminations in accordance with the present invention;
- Fig. 9 is a perspective of a sensor for locating edges of an individually contoured lamination during assembly of an integral three-dimensional object from laminations in accordance with the present invention;
- Fig. 10 is a perspective view of a plotter for producing artwork required for chemical etching the required shapes for individually contoured laminations for an integral three-dimensional object;
- Fig. 11 is a perspective view of chemical etching after selective exposure of a sheet-like material to ultra-violet light through the plotter generated artwork;
- Fig. 12 is a schematic illustration of furnace brazing to complete formation of an integral three-dimensional object formed of individually contoured laminations in accordance with the present invention;
- Fig. 13 is a plan view illustrating a method for attachment of non-contiguous cross section portions;
- Fig. 14 is a perspective view of still another embodiment of apparatus for forming an integral three-dimensional object from laminations in accordance with the present invention;

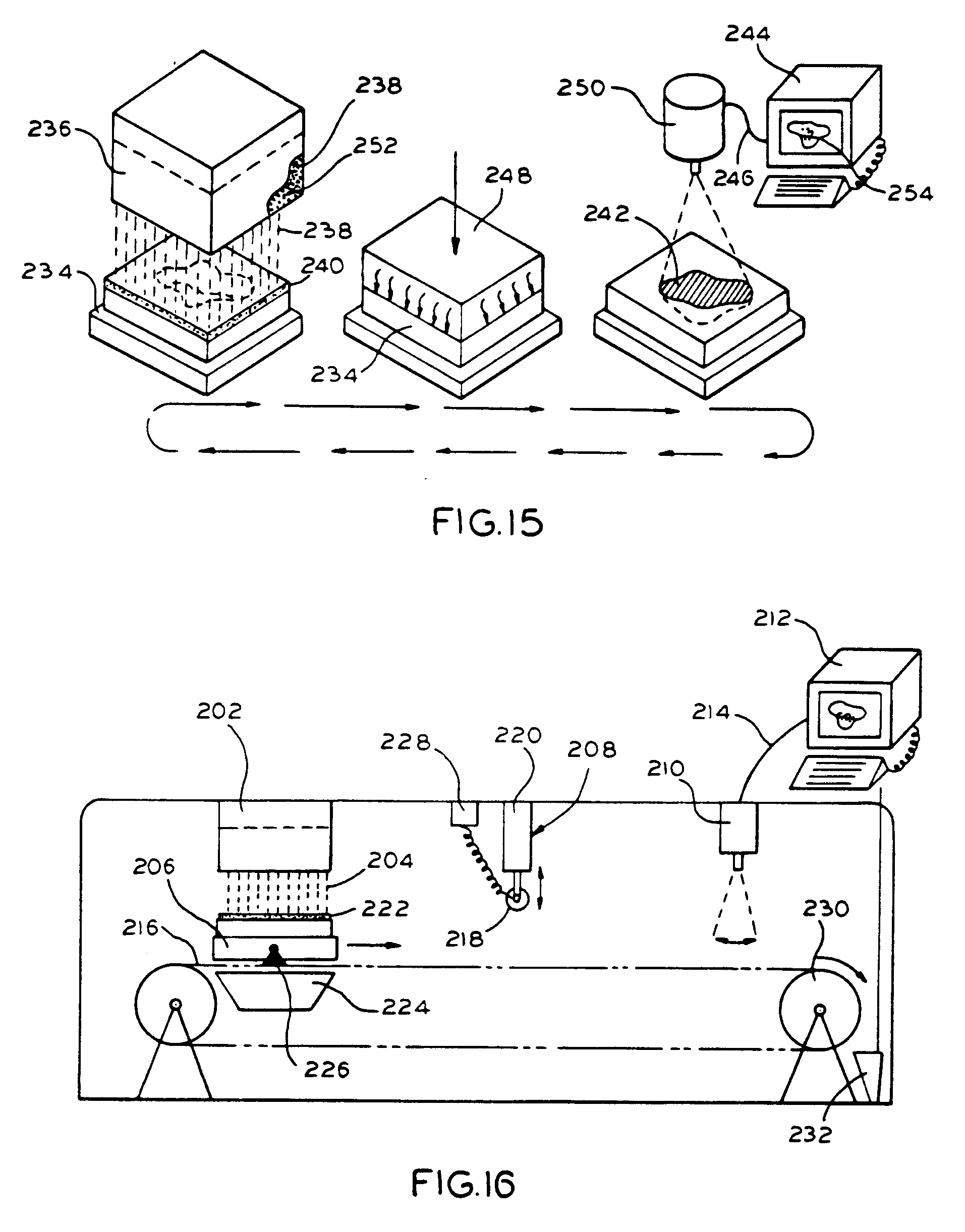

- Fig. 15 is a schematic illustration of a method of forming an integral three-dimensional object from individually contoured laminations utilizing a powder material; and
- Fig. 16 is a side elevational view of an apparatus for forming an integral three-dimensional object from individually contoured laminations utilizing a powder material.
Detailed Description of the Preferred Embodiments
-
[0012]

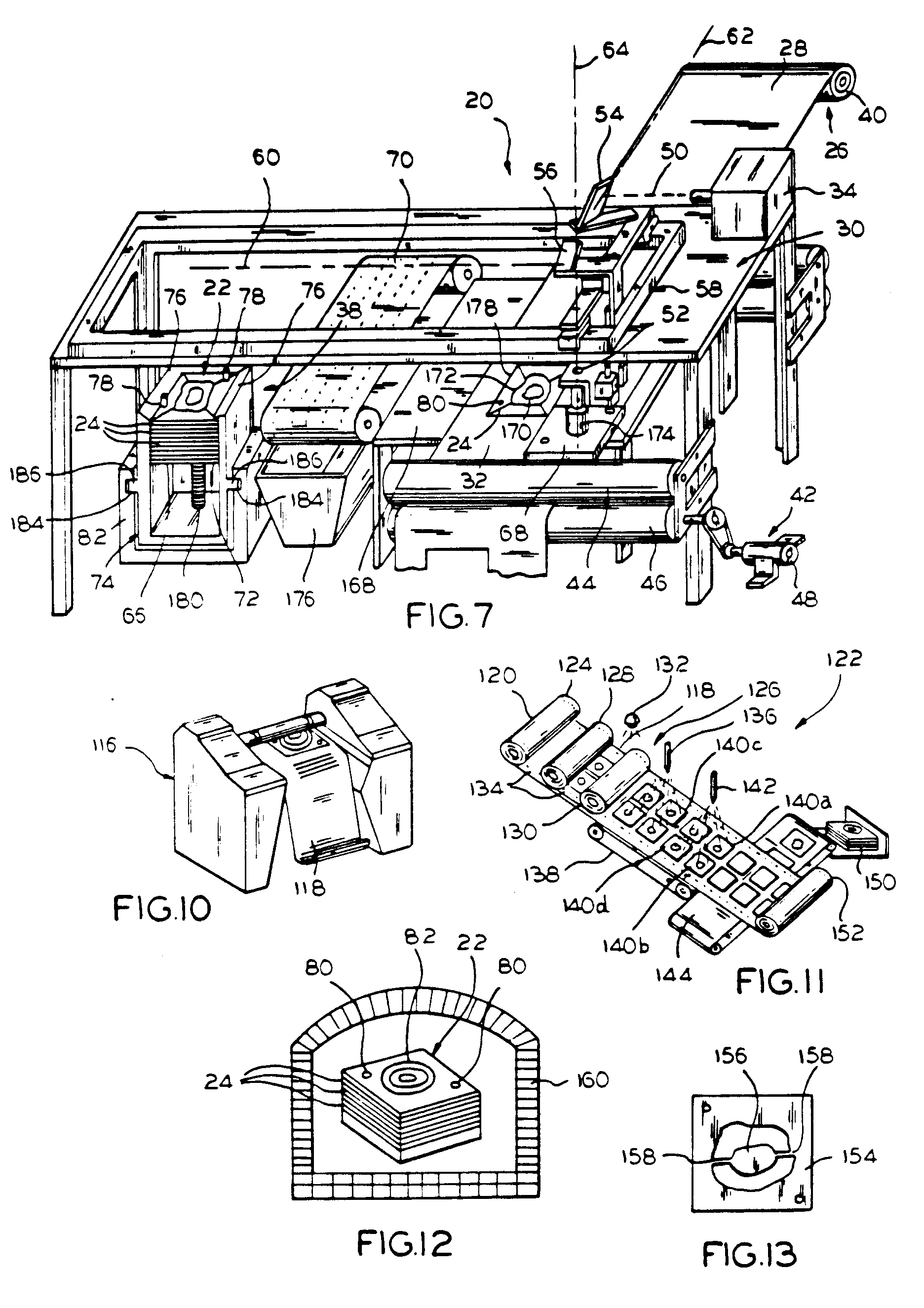

Referring to Fig. 7, the reference numeral 20 designates generally an apparatus for forming an integral three-dimensional object 22 from laminations 24 of the same or gradually varying shape. The apparatus 20 includes a station 26 for storing and supplying a material 28 and means for forming the material 28 into a plurality of individually contoured laminations 24 in shapes required for assembly in a preselected sequence into the three-dimensional object 22. More particularly, the lamination forming means includes a work station 30 having a position 32 for cutting the material together with means for cutting the material 28 into the required shapes at the cutting position 32 such as the laser beam generating device 34 operatively associated with the work station 30. The apparatus 20 also includes means for controlling the operation of the work station 30 to provide the individually contoured laminations 24 for the three-dimensional object 22 in response to data entered concerning the three-dimensional object 22. More specifically, the operation controlling means includes a computer assisted drafting station 36 for entering data concerning the three-dimensional object 22 (see Fig. 2a). The apparatus 20 still further includes an assembly station 38 for assembling the plurality of individually contoured laminations 24 formed from the material 28 in the pre-selected sequence into the form of the three-dimensional object 22. With this arrangement, the individually contoured laminations 24 of the same or gradually varying shape can be integrally bonded to complete formation of the three-dimensional object 22.
-
[0013]
In this connection, the apparatus 20 includes means for integrally bonding each of the individually contoured laminations 24 to the next adjacent of the individually contoured laminations 24 to complete the formation of the three-dimensional object 22. When the material 28 is a sheet-like material such as sheet metal ribbon, the integral bonding means comprises spot brazing the individually contoured laminations 24 at the assembly station 38 by utilizing the laser beam generating device 34 in a manner to be described hereinafter. Alternatively, if the sheet-like material 28 is of another material, such as a sheet-like plastic material, the integral bonding means will be selected to be compatible with the given material.
-
[0014]
Still referring to Fig. 7, the supply station 26 is preferably a roll 40 for storing the sheet-like material 28. It will also be appreciated that, with this arrangement, the apparatus 20 will include a feeding mechanism 42 for advancing the sheet-like material 28 (such as a sheet metal ribbon) from the roll 40 through the work station 30, substantially as shown. By utilizing a pair of frictional drive rollers 44 and 46, together with a motor 48 for driving one of the rollers 46, the sheet-like material 28 can be fed through the cutting position 32 of the work station 30.
-
[0015]
With the arrangement illustrated in Fig. 7, the cutting means also includes means for focusing a laser beam 50 from the generating device 34 onto the sheet-like material 28 at the cutting position 32. This preferably includes a lens 52 through which the laser beam 50 passes before reaching the sheet-like material 28 at the cutting position 32. The cutting means also includes means for directing the laser beam 50 from the generating device 34 about the sheet-like material 28 to form the required shapes at the cutting position 32. This preferably includes a pair of mirrors 54 and 56 adapted to direct the laser beam 50 from the generating device 34 through the lens 52. As shown, the mirrors 54 and 56 are spaced from the generating device 34, the lens 52, and one another.
-
[0016]
In a preferred embodiment, the means for directing the laser beam 50 includes a positioning table 58 for supporting the mirrors 54 and 56 for axial movement along mutually perpendicular axes 60 and 62. The positioning table 58 supports one of the mirrors 54 for movement toward and away from the generating device 34 along the axis 60, and it also supports the other of the mirrors 56 for movement with the one of the mirrors 54. Additionally, the positioning table 58 supports the other of the mirrors 56 for movement toward and away from the one of the mirrors 54 along the axis 62.
-
[0017]
As will be appreciated from Fig. 7, the mirrors 54 and 56 move in a plane generally parallel to the plane of the sheet-like material 28 at the cutting position 32. It will also be seen that the positioning table 58 supports the lens 52 for movement with the other of the mirrors 56 such that the lens 52 is adapted to move with the mirrors 54 and 56 in a plane generally parallel to the plane of the mirrors. Moreover, the lens 52 is also supported for movement along an axis 64 generally perpendicular to the plane of the mirrors 54 and 56.
-
[0018]
As previously mentioned, the lamination assembling means includes an assembly station 38 having a location 66 for stacking the individually contoured laminations 24. It will also be appreciated that means are provided for moving the individually contoured laminations 24 from the cutting position 32 of the work station 30 to the stacking location 66 of the assembly station 38. In the embodiment illustrated in Fig. 7, the moving means is an electromagnetically operated pick-up plate 68 movable between the cutting position 32 of the work station 30 and the stacking location 66 of the assembly station 38.
-
[0019]
As shown, the apparatus 20 preferably includes a grinding belt 70 intermediate the cutting position 32 of the work station 30 and the stacking location 66 of the assembly station 38. The pick-up plate 68 is adapted to place the individually contoured laminations 24 in contact with the grinding belt 70 during movement from the cutting position 32 of the work station 30 to the stacking location 66 of the assembly station 38. In this manner, any rough edges created during cutting can be removed between the cutting position 32 of the work station 30 and the stacking location 66 of the assembly station 38.
-
[0020]
Also as shown, the assembly station 38 includes a spring biased stacking plate 72 at the stacking location 66 disposed for axial movement in a stack holder 74 adapted to receive and retain the individually contoured laminations 24. The stack holder 74 is adapted for limited movement in a plane parallel to the plane of the stacking plate 72 and includes at least one retaining lip 76, and preferably a pair of retaining lips, adapted to cooperate with the spring biased stacking plate 72 to retain the individually contoured laminations 24 therebetween. With this construction, the individually contoured laminations 24 each have an identical generally rectangular outer contour and the stacking plate 72, stack holder 74, and retaining lips 76 cooperate with the generally rectangular contour to assemble the individually contoured laminations 24 into the form of the three-dimensional object 22.
-
[0021]
Preferably, the stacking plate 72 includes a pair of locating pins 78 adapted to precisely position the individually contoured laminations 24 into the form of the three-dimensional object 22. For this purpose, the individually contoured laminations 24 each have a pair of pin-receiving locating holes 80 (see Fig. 12) in the generally rectangular outer contour outwardly of any inner contour such as 82.
-
[0022]
Referring once again to Fig. 7, the electromagnetically operated pick-up plate 68 is operatively associated with the lens supporting portion 52 of the positioning table 58. The pick-up plate 68 is adapted to be placed in contact with the individually contoured laminations 24 at the cutting position 32 of the work station 30 to be electromagnetically attached thereto, and the positioning table 58 is adapted to move the individually contoured laminations from the cutting position 32 of the work station 30, first, to the grinding belt 70 and, next, to the stacking location 66 of the assembly station 38. Thereafter, the individually contoured laminations 24 are adapted to be released from the pick-up plate 68 and are adapted to be spot brazed with the laser beam generating device 34 at the stacking location 66 of the assembly station 38.
-
[0023]

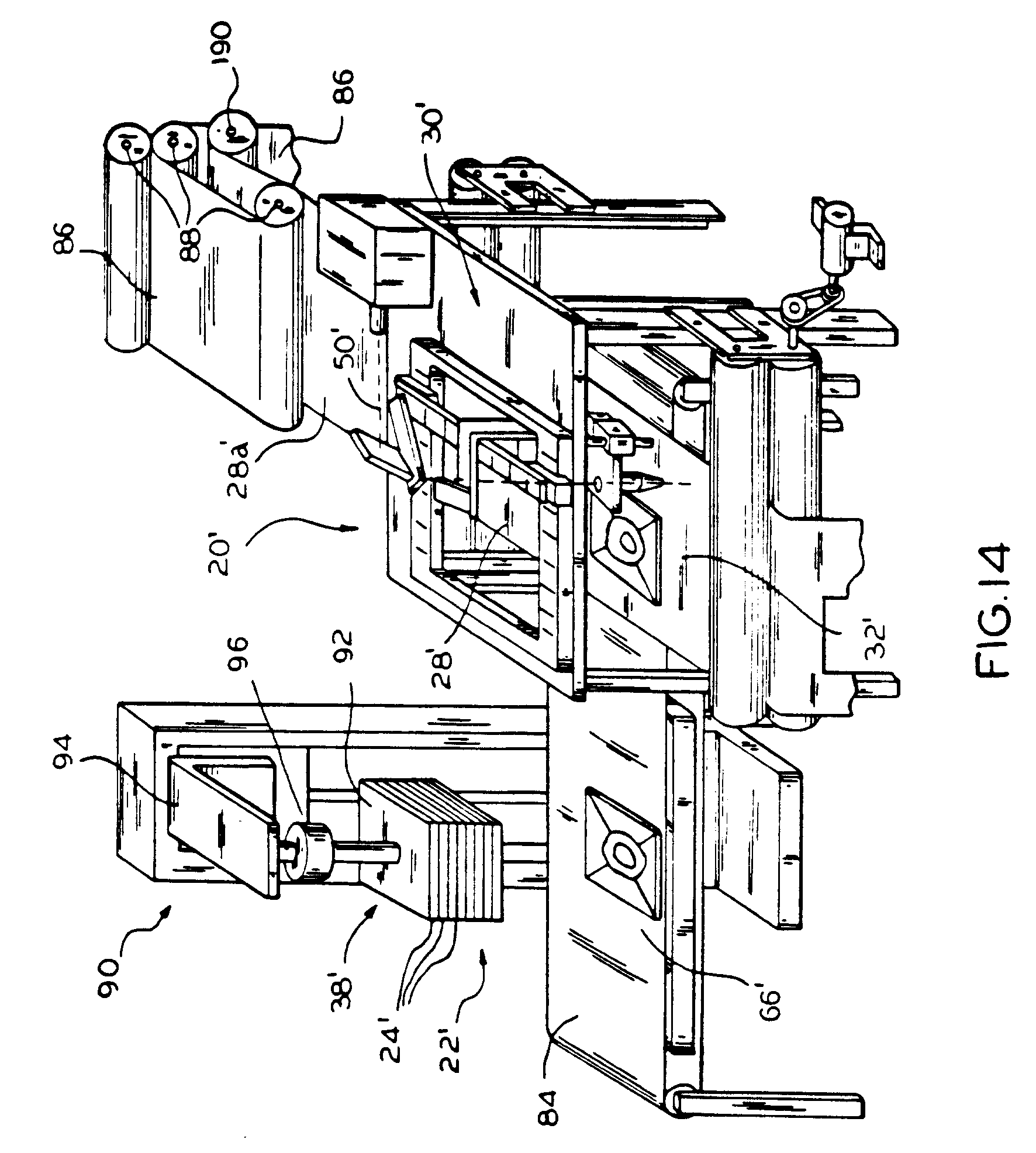

In an alternative embodiment illustrated in Fig. 14, the apparatus 20' has a conveyor belt 84 for directly transporting the individually contoured laminations 24' from the cutting position 32' of the work station 30' to the stacking location 66' of the assembly station 38'. The sheet-like material 28' is preferably a sheet-like plastic ribbon having a pressure sensitive adhesive on the top 28a' thereof covered with a surface protecting tape 86, although it is also contemplated that the sheet-like plastic ribbon may be provided without a pre-coated adhesive in which case the apparatus 20' would include a coating station where a thin layer of adhesive would be applied to the ribbon prior to cutting. With the former type of material, the apparatus 20' includes means such as a roller 88 for removing the tape 86 before the plastic ribbon 28' enters the cutting position 32' of the workstation 30'.
-
[0024]
Still referring to Fig. 14, the assembly station 38' comprises a stacking device 90 including a movable plate 92 at the stacking location 66'. The plate 92 is disposed on a stacking platform 94 for axial movement to press individually contoured laminations 24' assembled on the plate 92 to the next adjacent individually contoured lamination 24' carried from the cutting position 32' of the workstation 30' to the stacking location 66' of the assembly station 38'. Moreover, as shown, a load cell 96 is associated with the plate 92 to ensure a force sufficient to cause an adhesive bond between the individually contoured laminations 24'.
-
[0025]

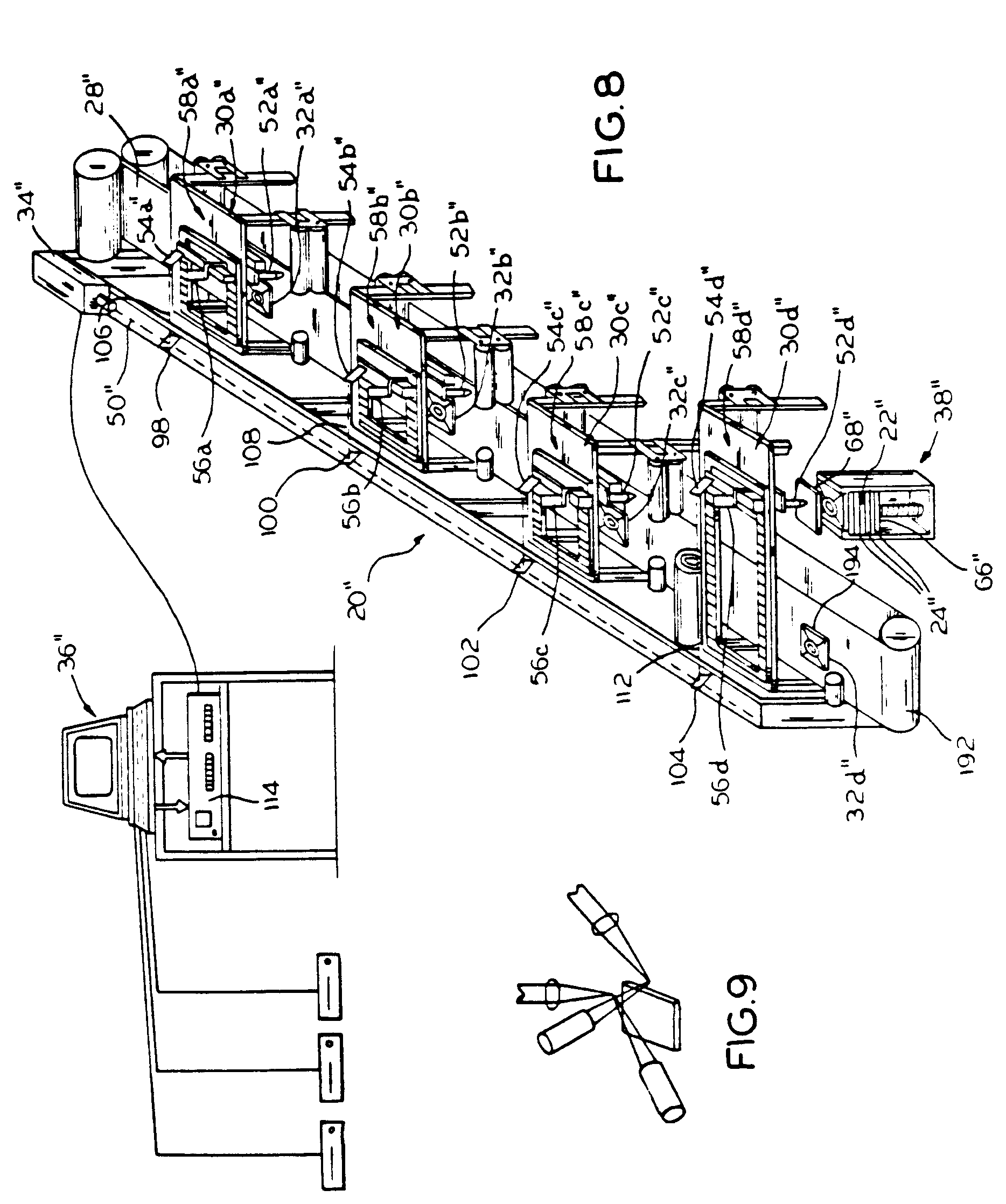

In still one other alternative embodiment illustrated in Fig. 8, the lamination forming means includes a plurality of workstations 30a'', 30b'', 30c'', 30d'', etc., each having a position 32a'', 32b'', 32c'', 32d'' etc., for cutting the sheet-like material 28'' into the required shapes at their respective cutting positions. The cutting means may include a single laser beam generating device 34'' operatively associated with each of the workstations 30a'', 30b'', 30c'', 30d'', etc. through beam splitters 98, 100, 102, 104, etc. together with means for directing and focusing laser beams 106, 108, 110, 112, etc. from the beam splitters 98, 100, 102, 104, etc. onto the sheet-like material 28'' at the cutting positions 32a'', 32b'', 32c'', 32d'' etc. With this arrangement, the apparatus 20'' offers high speed formation of an integral three-dimensional object 22'' from a plurality of individually contoured laminations 24''.
-
[0026]
Still referring to Fig. 8, the means for directing and focusing the laser beams 106, 108, 110, 112 etc. includes a pair of mirrors and a lens supported for movement at each of the positioning tables 58a'', 58b'', 58c'', 58d'' etc. The positioning tables 58a'', 58b'', 58c'', 58d'', etc. preferably include respective pairs of mirrors 54a'' and 56a'', 54b'' and 56b'', 54c'' and 56c'', 54d'' and 56d'', etc. and respective lenses 52a'', 52b'', 52c'', 52d'' etc., all of which operate in the manner described in detail in connection with corresponding components of the single positioning table 58 illustrated in Fig. 7, with the exception that the mirrors 54a'', 54b'', 54c'', 54d'' etc. are movable toward and away from the perspective beam splitters 98, 100, 102, 104, etc. rather than with respect to the laser beam generating device 34''. With this arrangement, a plurality of individually contoured laminations 24' can be cut simultaneously at the respective workstations 30a'', 30b'', 30c'', 30d'' etc. to expedite the formation of the three-dimensional object 22''.
-
[0027]
As shown in Fig. 8, the lamination assembling means includes a single assembly station 38'' having a location 66'' for stacking the individually contoured laminations 24'' from all of the workstations 30a'', 30b'', 30c'', 30d'' etc. In addition, the apparatus 20'' includes means such as the electromagnetically operated pick-up plate 68'' for moving the individually contoured laminations 24'' from the cutting positions 32a'', 32b'', 32c'', 32d'' etc. of the workstations 30a'', 30b'', 30c'', 30d'' etc. to the stacking location 66'' of the single assembly station 38''.
-
[0028]
Still referring to Fig. 8, the apparatus 20'' includes a computer assisted drafting station 36'' for entering data concerning the three-dimensional object 22'' together with means associated with the computer assisted drafting station 36'' for transferring operation controlling signals to the work stations 30a'', 30b'', 30c'', 30d''. In particular, the signal transferring means preferably comprises a multiplexer 114 that is operatively associated both with the computer assisted drafting station 36'' and with the work stations 30a'', 30b'', 30c'', 30d'' etc. in conventional fashion and the computer assisted drafting station 36'' is provided with software for determining the thickness of the individually contoured lamination 24'', for determining the individual contours of the individually contoured laminations 24'' for determining the sequence of forming the individually contoured laminations 24'' and for determining the sequence of assembling the individually contoured laminations 24'' into the three-dimensional object 22''. With this arrangement, the computer assisted drafting station 36'' is operative to insure for each of the individually contoured laminations 24'' that, after the thickness and individual contours have been determined, the sequence of forming the individually contoured laminations 24'' is such that each of the individual contours does not contain any other included contour.
-
[0029]
While not specifically shown, it will be understood and appreciated that a similar computer assisted drafting station will be utilized with either of the embodiments illustrated in Figs. 7 and 14, as well.
-
[0030]
In still another embodiment, the lamination forming means includes a plotter 116 (Fig. 10) for producing the required shapes as negative images on a separate transparent sheet-like material 118 for use as artwork in the chemical etching process. The sheet-like material 118 is supplied to the plotter 116 from a supply station housing rolls or containers of the material. Referring now to Fig. 11, the use of the plotter generated artwork in a chemical etching process can be understood. The sheet-like material 120 for the three-dimensional object 22 comprises a bi-metallic strip of thin metal coated with a photoresistent material for exposure to ultraviolet light. As will be appreciated, the sheet-like material 120 must be thin in relation to the overall size of the three-dimensional object 22 so that gradual changes in the three-dimensional geometry can be reproduced in the laminating process.
-
[0031]
Still referring to Fig. 11, the apparatus 122 supplies the sheet-like material 120 from the roll 124 to the station 126 where selective exposure to ultraviolet light occurs. At this station 126, the sheet-like material 118 with the plotter generated artwork is gradually unwound from the roll 128 and rewound onto the roll 130 as the sheet-like material 120 moves under the artwork at the same speed for exposure to the ultraviolet light through the artwork from the source 132. Preferably, the speed of the artwork on the sheet-like material 118 and the speed of the sheet-like material 120 is equalized through use of a series of conventional sprockets (not shown) cooperating with respective mating perforations 134.
-
[0032]
It should be understood that the artwork could be created by the plotter on a transparent film attached to the metal ribbon prior to the plotting and ultraviolet light exposure. In another version of this method the artwork could be created by the plotter directly on the surface of the metal precovered by photoresistant material.
-
[0033]
After the exposure to ultraviolet light, a chemical etching solution is sprayed onto the sheet-like material 120 from a nozzle 136. Individually contoured laminations then drop onto a conveyor 138. At this point, the conveyor 138 moves the individually contoured laminations such as 140a, 140b, 140c, and 140d to a washing station where washing solution is sprayed from a nozzle 142.
-
[0034]
In order to fully utilize the bi-metallic material, more than one cross section such as 140a, 140b, 140c, 140d can be produced in any given row with each row of etched and washed individually contoured laminations such as 140a and 140b being transported by the conveyor 138 to another conveyor 144 preferably moving generally transversely of the direction of the conveyor 138. After accepting a new row of individually contoured laminations such as 140a and 140b, the conveyor 148 advances to allow space for another row of individually contoured laminations such as 140c and 140d and to advance the first row of individually contoured laminations onto the stack as at 150 with the unused bimetallic material being rewound onto a roll 152.
-
[0035]
Referring to Fig. 13, a method of attachment for non-contiguous portions of the same cross section can be understood. Portions 154 and 156 are connected by means of the thin strips 158. After stacking individually contoured laminations and brazing them together, the thin strips 158 can be removed by using conventional machining techniques.
-
[0036]
Referring to Fig. 12, the pin-receiving locating holes 80 an either be chemically etched or laser cut in the individually contoured laminations 24. This is, of course, done to properly align the inner contours such as 82 during the furnace brazing process in a brazing furnace such as 160. As with the embodiment described in Fig. 7, the alignment is aided by the cooperation of two locating pins such as 78 adapted to protrude through the locating holes 80.
-
[0037]
Referring to Figs. 1A-1C, one application of the present invention can be understood. It will be seen that a product part 162 is illustrated in Fig. 1A with two die or mold halves 164 and 166 for making the product part 162 being illustrated in Figs. 1B and 1C. With this information, the die or mold halves 164 and 166 can be created from laminations in accordance with the present invention.
-
[0038]
In particular, the die or mold design is first created on the computer assisted drafting station 36 (see Fig. 2A). Next, the laser beam 50 is manipulated to cut the individually contoured laminations 24 and the laminations are joined to form the three-dimensional object 22 (see Fig. 2B and 3). Then, the individually contoured laminations 24 are spot brazed by means of the laser beam 50 and thereafter furnace brazed to complete formation of the three-dimensional object 22 (see Fig. 4). Finally, any roughness of the die or mold halves 164 and 166 is removed by means such as grinding (see Fig. 5), and the die or mold halves 164 and 166 are plated, if desired (see Fig. 6).
-
[0039]
As will be appreciated from this description and the schematic it describes, the present invention provides a unique method of forming an integral three-dimensional object from laminations. The method includes the step of providing means for forming a material into a plurality of individually contoured laminations in shapes required for assembly in a pre-selected sequence into the three-dimensional object. It also includes the step of providing means for controlling the operation of the lamination forming means to provide the individually contoured laminations for the three-dimensional object. The method further includes the step of entering data concerning the three-dimensional object into the operation controlling means and thereafter instructing the operation controlling means to operate the lamination forming means in a controlled manner so as to form the plurality of individually contoured laminations. It also includes the step of assembling the plurality of individually contoured laminations in the pre-selected sequence into the form of the three-dimensional object. The method still further comprises the plurality of individually contoured laminations being assembled such that each of the individually contoured laminations is integrally bonded to the next adjacent of the individually contoured laminations to complete formation of the three-dimensional object. With these steps, a unique three-dimensional object formed from individually contoured laminations results.
-
[0040]
As will be appreciated, the lamination forming means preferably is configured in accordance with the details of the embodiments described hereinabove. It is also advantageous for the operation controlling means to be similarly configured and to have like features for maximizing the benefits to be gained by following the method of the present invention. By so doing, the operation controlling means is capable of operating the lamination forming means in the necessary controlled manner.
-
[0041]
With regard to the assembling step, it preferably includes providing a location for stacking the individually contoured laminations. The individually contoured laminations are then moved from the cutting position of the work station to the stacking location. After moving, the individually contoured laminations are stacked into the form of the three-dimensional object.
-
[0042]
Preferably, if burrs are formed during the cutting operation, the method includes the step of grinding the individually contoured laminations after cutting the required shapes at the cutting position of the workstation. This is done to remove any roughness caused by the cutting step although it will be appreciated that this will not be necessary in the case of the chemical etching process since no burrs will be formed. As will be appreciated from the embodiment of Fig. 7, the grinding step is performed when needed at a point in time prior to stacking the individually contoured laminations at the stacking locations.
-
[0043]
With regard to the step of bonding the laminations, this preferably includes spot brazing each of the laminations to the next adjacent of the laminations to complete formation of the three-dimensional object, although this is not required in the chemical etching process. It also preferably includes thereafter furnace brazing the entire three-dimensional object, as shown in Fig. 12, after which the three-dimensional object becomes a unitary product, e.g., the two die or mold halves 164 and 166 are each a unitary portion of the overall die or mold for making the product part 162. After furnace brazing, the method preferably includes the step of grinding the three-dimensional object (see Fig. 5) and thereafter plating the three-dimensional object (see Fig. 6), although the grinding again may not be needed in the chemical etching process.
-
[0044]
When the material is a sheet-like material such as, e.g., a sheet-like plastic ribbon having a pressure sensitive adhesive on the top, the method will include the step of removing the surface protecting tape over the pressure sensitive adhesive before the sheet-like plastic ribbon enters the cutting position of the workstation. The method will also include the step of pressing individually contoured laminations located at the stacking location to the next adjacent individually contoured lamination moved from the cutting position of the work station to the stacking location to cause an adhesive bond between the individually contoured laminations. While not limited to the apparatus that is illustrated in the embodiment of Fig. 14, it will be appreciated that this apparatus can be utilized to perform the unique method described.
-
[0045]
Finally, the method can include the step of providing a plurality of work stations each having a position for cutting a sheet-like material along with the step of providing means for cutting the sheet-like material into the required shapes at the cutting positions. The cutting means will then include a single laser beam generating device operatively associated with each of the workstations through a beam splitter. Moreover, the cutting means will also include means for directing and focusing laser beams from the beam splitters onto the sheet-like material at the cutting positions of each of the workstations.
-
[0046]
By utilizing the method of the invention, a unique three-dimensional object formed from individually contoured laminations can be provided. This is accomplished with a technique which can be utilized for production of complex three-dimensional parts, dies, molds, prototypes, products conventionally produced by machining, and even forming parts for reconstructive bone surgery, and involves creation and then lamination of the thin individually contoured laminations of the solid body using equipment such as computer assisted drafting stations, plotters, laser beam generating devices and the like. As a result, it is possible to significantly shorten the time between the design and the manufacturing stages, reduce labor costs, increase productivity and provide a flexible manufacturing system.
-
[0047]
The principle of the flexible manufacturing system can now be understood. A sheet metal ribbon 28 is fed into the workstation 30 (see Fig. 7) from a roll 40 at a supply station 26 where the ribbon is made from .001-.030 inch (0,002-0,076 cm) thick bimetallic material, e.g., steel clad with copper on the bottom or any other such materials having different melting temperatures, with the metal having the higher melting temperature constituting the thickest layer of the ribbon on the order of 70 to 98% and with the remainder, i.e., 2 to 30%, constituting the low melting temperature portion used for brazing the individually contoured laminations 24 together, and a laser beam 50 is generated and directed to a cutting position 32 by means of the mirrors 54 and 56 and the lens 52 attached to the positioning table 58. As noted before, the mirrors 54 and 56 are movable in the plane defined by the axes 60 and 62 and the lens 52 is movable along the axis 64 perpendicular thereto.
-
[0048]
Similarly, the principle of the flexible manufacturing system can be understood by referring to Fig. 11. A sheet metal ribbon 120 is fed under the ultraviolet light source 132, the etching nozzle 136, and the washing nozzle 142 where the ribbon is again made from .001-.030 inch (0,002-0,076 cm) thick bimetallic material, e.g., steel clad with copper on the bottom or any other such material having different melting temperatures, with the metal having the higher melting temperature again constituting the thickest layer of the ribbon on the order of 70 to 98% and with the remainder, i.e., 2 to 30%, constituting the low melting temperature portion used for brazing the individually contoured laminations 24 together, and the overall method is as previously described hereinabove. As noted before, the individually contoured laminations such as 140a, 140b, 140c, and 140d are deposited onto the stack 150 after completion of the chemical etching process.
-
[0049]
Referring once again to Fig. 7, by utilizing the positioning table 58 to manipulate the laser beam 50, it is possible to cut an individually contoured lamination 24 for the three-dimensional object 22. The sequence of cutting is determined by the computer assisted drafting station software or the programmer in such a manner that portions of the cross-section cut first do not contain any other included contours to ensure that there is always a small gap between the portion of the sheet metal ribbon 28 cut and the table 168 upon which it drops after cutting. For example, when the individually contoured lamination 24 is being cut, the contour 170 must be cut first and the contour 172 must be cut after it.
-
[0050]
When the individually contoured lamination 24 has been cut, the positioning table 58 moves the pick-up plate 68 above and in contact with the surface of the lamination 24. An electromagnet 174 is energized to attract the lamination 24 to the pick-up plate 68 and the lamination 24 is moved into contact with the moving grinding belt 70. By so doing, the dross created by the melting and resolidification of the metal at the bottom of the cut line is removed in this operation from the lamination 24.
-
[0051]
As will be appreciated, the grinding belt 70 can also transport portions of the lamination 24 to be discarded into a scrap container 176. This will be helpful, for instance, when, instead of a mold or die, the system is used to create a part prototype where it may be desirable to discard the portion between the contours 170 and 172. For such applications, the apparatus 20 is well suited for assembling a plurality of individually contoured laminations 24 into an integral three-dimensional object 22.
-
[0052]
More specifically, the contour 170 would be cut first, if necesary the dross would be removed with the grinding belt 70, and the contour 170 would be loaded onto the stacking platform 72. Next, the portion between the contours 170 and 172 would be discarded by first cutting the contour 172, then lifting it by means of the pick-up plate 68 and releasing it above the moving grinding belt 70 which will transport that portion to the scrap container 176. Finally, the outer rectangular contour 178 and the pin receiving locating holes 80 will be cut by means of the laser beam 50.
-
[0053]
In the embodiment illustrated in Fig. 7, the outer rectangular contour 178 is important for stacking individually contoured laminations 24 in a manner accommodating accurate spot brazing. As was previously done with the inner contour 170, the outer rectangular contour 178 is picked up and positioned above the stack holder 74 after which it is pushed against the stack of individually contoured laminations 24 so that the spring 180 compresses. When the pick-up plate 68 returns to its upper position, the spring 180 pushes the stacking plate 72 until the individually contoured lamination 24 just loaded pushes against the retaining lips 76.
-
[0054]
Because of the triangular shape of the lips 76, the stack of individually contoured laminations 24 can be pushed down but are prevented from being pushed up beyond the retaining lips 76. Thus, each lamination 24 ends up at the same level after its initial loading, i.e., the level of the retaining lips 76. After initial loading, the positioning table 58 positions the mirrors 54 and 56 where needed and positions the lens 52 within the focal distance from the just loaded lamination 24, and the system spot brazes the just loaded lamination 24 to the stack with short laser pulses.
-
[0055]
As will be appreciated, spot brazing is needed only to hold the individually contoured laminations 24 together temporarily until furnace brazing at a later stage of assembly, although if each individually contoured lamintion 24 consists of a single piece of metal, the spot brazing step may be omitted.
-
[0056]
While the positioning table 58 is precise enough to accurately locate the individually contoured laminations 24, the stacking process itself is aided by the two locating pins 78. These pins 78, which are located perpendicularly to the stacking plate 72, have conical ends and, when each individually contoured lamination 24 is pushed onto the stack, the pins 78 protrude through the locating holes 80. If the holes 80 are not perfectly concentric with the pins 78, their inner diameters press against the conical surfaces of the pins 78 to produce enough force to move the stack holder 74 with respect to the stack holder housing 182.
-
[0057]
In this connection, the stack holder housing 182 has a pair of grooves 184 disposed in a generally horizontal plane. These grooves loosely receive a pair of tongues 186 projecting outwardly from the sides of the stack holder 74. With this construction, the tongues 186 support the stack holder 74 for limited movement with minimal friction in a generally horizontal plane.
-
[0058]
After each of the individually contoured laminations 24 is spot brazed to the stack, the feeding mechanism 42 advances the sheet metal ribbon 28 and the cycle resumes.
-
[0059]
After all of the individually contoured laminations 24 have been attached to form the three-dimensional object 22, the three-dimensional object 22 can be placed in the brazing furnace 160 (see Fig. 12). Unacceptable roughness after brazing can be eliminated by grinding (see Fig. 5) before the mold surface is coated (by using an electroless nickel process or other finishing technique) to achieve the desired tolerance and surface finish characteristics. In the case of a mold or die, both halves are laminated simultaneously in a single process, and cutting, dross removal, loading, and spot brazing are done by the same positioning table driven by a computer assisted drafting station.
-
[0060]
Referring once again to the embodiment illustrated in Fig. 14, the apparatus 20' is well suited for making plastic three-dimensional prototypes under the principles described in detail hereinabove. The primary reason for using plastics is to reduce the needed laser power sufficiently to accommodate the use of a compact, inexpensive laser which can be easily installed in an engineering, design, research laboratory or model shop environment. In effect, the apparatus 20' would be another computer output peripheral analogous to a printer or plotter.
-
[0061]
With the apparatus 20', the plastic ribbon 28' coated on the top with a pressure sensitive adhesive is fed from a roll 190. A mechanism which consists of several rollers 88 will remove the surface protecting tape 86 which is provided to protect the surface of the plastic ribbon 28' covered with adhesive. When the tape 86 has been removed, the laser beam 50' will cut the individually contoured laminations 24' in accordance with the sequence described hereinabove.
-
[0062]
With the apparatus 20' in Fig. 14, the portions cut from the plastic ribbon 28' will drop on the conveyor belt 84. Those portions comprising the individually contoured laminations 24' that are to be attached to the stack at the stacking platform 90 will be advanced by the conveyor belt 84 over a certain distance and positioned under the stacking platform 94. Additionally, those portions to be discarded will be advanced by the conveyor belt 84 until they drop into a scrap container.
-
[0063]
After an individually contoured lamination 24' is positioned under the stacking platform 94, the stacking platform 94 moves down until the stacking plate 92 presses the stack to the individually contoured lamination 24' to be attached. The load cell 96 transmits feedback about the load, and the amount of the load necessary to attach a particular individually contoured lamination 24' is calculated by a computer. In this manner, an adhesive bond develops between the individually contoured lamination 24' and the remainder of the stack, and the lamination 24' stays attached to the stack when the stack moves up with the stacking platform 94.
-
[0064]
With regard to the embodiment illustrated in Fig. 8, the apparatus 20'' comprises an automated production line utilizing the principles of the present invention. All of the work stations 30a'', 30b'', 30c'' 30d'' etc. can cut cross-sections from metal or plastic simultaneously and can either share the same ribbon as shown in Fig. 8, or can have an arrangement similar to the one shown in Figs. 7 and 14 where individual ribbon feeders are provided for each substation positioned perpendicularly to a common carrying conveyor. After all of the individually contoured laminations 24'' have been cut, the conveyor 192 moves them one-by-one to the unloading substation 194 where they are removed to the stacking station 38'' in the previously described manner.
-
[0065]
With this embodiment, there is no physical limit to the number of work stations 30a'', 30b'', 30c'', 30d'' etc. which can be installed in the automated production line. In addition, a number of such work stations can be powered by the same laser beam generating device 34'' by providing the laser beam 50'' by means of beam splitters 98, 100, 102, 104 etc. In addition, all of such work stations can share the same computer assisted drafting station 36'', conveyor belt 192, and stacking station 38'' to produce both plastic and metal parts.
-
[0066]
With regard to the system represented in Figs. 10 and 11, a chemical etching process is utilized to automatically produce composites. The three-dimensional composites can comprise specialized parts, dies, molds, product prototypes and other objects which can be described as geometrically bounded shapes. Basically, Figs. 10 and 11 are representative of a process and apparatus that utilizes a number of advances.
-
[0067]
In particular, advances in the field of polymer science have lead to the creation of molded parts with such good mechanical properties that they are directly replacing metal parts. By contrast, dies and molds are now produced primarily by machining blocks of steel with milling machines and other conventional and numerically controlled machine tools. With the present invention, an entirely new method for manufacturing dies and molds is provided which takes advantages of the advances in the field of polymer science.
-
[0068]
In this connection, chemical etching or machining is a process in which material is removed by chemical and electrochemical dissolution of preferentially exposed surfaces of a work piece. This process, which is also known as chemical milling, photo fabricating and photo etching, possesses many technical and economical advantages in the manufacture of flat metal components. Parts of intricate design, such as computer chips and printed circuit boards, are produced by this method.
-
[0069]
Because the metal is removed not only very precisely but also without the use of mechanical force and heat, problems of dross, burned edges, stress, strain, warping and burrs are avoided. The tooling costs are small compared with conventional or numerical control tooling and time costs are reduced because of the comparatively rapid turnarounds which can be achieved. Many materials can be chemically milled, including aluminum, nickel, brass, copper, stainless steel, spring steel and molybdenum.
-
[0070]
The making of a laminated mold or die with the use of chemical milling or etching is illustrated in Figs. 10 and 11. The mold or die design is created and then cross-sectioned at a computer assisted drafting station and the distance between cross-sections or laminations as specified to be the same as the thickness of the sheet material which is to be used. In addition, the geometry of each of the individually contoured laminations is transmitted to a specified plotter 116 which is particularly well suited to the production of filled areas.
-
[0071]
If multiple plotters such as 116 are used, then multiple individually contoured laminations for the three-dimensional object can be manufactured simultaneously. Thus, the critical production path elapsed time depends upon a number of plotters such as 116 used for production of individually contoured laminations. For instance, if each of the individually contoured laminations require 3.5 minutes and if 10 such plotters are employed, the art work required for production of a four inch thick part can be generated within two hours.
-
[0072]
As previously suggested, each of the individually contoured laminations will be drawn as a negative image with white against a dark background. The background areas will be chemically removed in a subsequent etching process (as shown in Fig. 11), and the negatives can be produced on paper or mylar. In this connection, mylar could be directly attached to or produced directly on the surface of metal sheets coated with a photo resistant material for exposure to ultraviolet light.
-
[0073]
To perform the steps for chemical blanking, the application of a photoresistant material can be done on a large quantity basis as long as the sheets are stored and handled with care in preparation of work pieces. Exposure and etching operations are fairly fast, e.g., for a sheet of metal .01 inch thick, it will take from 10 to 30 minutes to do bath etching. Since all cross-sections can be etched simultaneously, the process is principally dependant upon the art work production.
-
[0074]
After the etching has been completed and the photoresistant material has been removed, the sheets must be stacked together and laminated in a brazing furnace. Upon completion of the brazing process, a monolithic die, mold, prototype or other object will exist from the three-dimensional object formed from the individually contoured laminations. Depending upon the final application for the object, surface coating or finishing can be performed as previously described.
-
[0075]
As shown in Fig. 5, the brazed part will have a step-like geometry, but the step edges can be eliminated by grinding before the surface is coated. As previously mentioned, the surface can be coated using the electroless nickel process or other finishing technique to achieve desired tolerances and surface finishes.
-
[0076]
With regard to the sheet-like material utilized for the individually contoured laminations in the laser cutting process and the chemical etching process, it will be understood that this is preferably a "bimaterial" meaning that it is comprised of more than a single material. For instance, it may comprise a bimetallic material such as steel clad with copper, or it may comprise a metal covered with adhesive, or it may comprise a plastic covered with adhesive, depending upon the exact process utilized, i.e., whether the individually contoured laminations will be integrally bonded by means of brazing or through applied pressure. In addition, either or both sides of the principal portion of the sheet-like material may be suitably covered with the bonding material.
-
[0077]
As mentioned previously in connection with the utilization of a bimetallic material, the principal material will comprise on the order of 70 to 98% of the sheet-like material with the bonding material comprising on the order of 2 to 30% of the sheet-like material. It will be appreciated, of course, that in the case of a bimetallic material, the principal material should have a melting point sufficiently higher than the bonding material so that the principal material will not deform during brazing. Similarly, in the case of an adhesive bond, there will be sufficient adhesive to create a strong bond following the application of pressure.
-
[0078]
In order to form an integral three-dimensional object from individually contoured laminations, it is highly desirable for the individually contoured laminations to have the same or gradually varying shape. This can be achieved provided that each of the individually contoured laminations comprises no more than approximately 0.125% of the entire thickness of the integral three-dimensional object, e.g., approximately 0.030 inches (0,0762 cm) maximum thickness for an integral three-dimensional object up to approximately 2 feet thick. By following these parameters, the contour will be relatively smooth and require a minimum of grinding prior to plating.
-
[0079]
Referring now to Fig. 16, still another apparatus 200 for forming an integral three-dimensional object from laminations is illustrated and includes a station 202 for storing and supplying a powder material 204. The lamination forming means includes a powder receiving platform 206, means 208 for compressing the powder 204 on the platform 206 to a predetermined thickness, and means 210 for integrally bonding at least some of the powder 204 to complete formation of one of the individually contoured laminations. The operation controlling means includes a computer assisted drafting station 212 for entering data concerning the three-dimensional object and means 214 for transferring operation controlling signals to the lamination forming means. The lamination assembling includes means 216 for moving the powder receiving platform 206 in cyclical fashion from the powder storing and supplying station 202 to the powder compressing means 208 and to the integral bonding means 210. Preferably, the powder compressing means 208 includes a heated roller 218 controlled by an actuator 220 regulated to control the force of the roller 218 on the powder 204 to achieve bonding during compression.
-
[0080]
As will be appreciated from Fig. 16, the integral bonding means 210 preferably comprises a computer interfaced laser scanner. The computer interfaced laser scanner 210 is adapted to integrally bond at least some of the powder 204 formed into a layer as at 222 on the platform 206 which is compressed by the roller 218. After this has been done, the integrally bonded powder comprises one of the individually contoured laminations.
-
[0081]
As will be appreciated, the platform moving means 216 is a conveyor. Also, the station 202 for storing and supplying the powder is preferably disposed above an upper surface of the conveyor 216. In addition, a recirculation container 224 is preferably disposed below the upper surface of the conveyor 216.
-
[0082]
As shown, the platform 206 is preferably attached to the conveyor 216 by pivotal side support mountings 226. The platform 206 receives the powder 204 so as to form the layer 222 while it is disposed below the container 202 with any excess falling into the recirculation container 224 for periodic recirculation back into the station 202. After the powder deposition on the platform 206, the conveyor 216 moves the platform 206 under the roller 218.
-
[0083]
As this occurs, the roller 218 is brought into contact with the powder layer 222 by action of the linear actuator 220. The roller 218 is preferably electrically heated from a power supply 228 with the force of the actuator 220 being regulated in order to achieve proper bonding during compression of the powder layer 222. As will be appreciated, the roller 218 has the advantage of having a small area of contact with the powder layer 222 meaning that a relatively small force from the actuator 220 is required to achieve the desired pressure.
-
[0084]
Next, the conveyor 216 moves the platform 206 under the computer interfaced laser scanner 210. The scanner sinters or melts the material within the boundaries of the cross-section designated by the computer assisted drafting station 212 to form the required one of the individually contoured laminations. Then, the platform 206 is moved around the drum 230 of the conveyor 216 (with excess powder 204 falling into the container 232) after which the platform 206 returns to a position under the station 202 for repeating the process to form the next of the individually contoured laminations.
-
[0085]
Clearly, the apparatus 200 illustrated in detail in Fig. 16 demonstrates that powder techniques can be utilized for laminated object manufacturing. In this process, smaller laser beam intensity is required in comparison with cross-section cutting techniques, such as those described hereinabove. Instead of vaporizing metal or plastic (as occurs in cutting), the material only has to be selectively heated to a temperature that creates intermolecular bonds.
-
[0086]
At such temperatures, sintering or melting of particles of material occurs. The apparatus 200 implementing this powder process is simpler, e.g., than laminating objects from foil, since cross sections are created and attached to the stack at the same time. Moreover, by utilizing this technique, problems associated with non-contiguous contours are entirely avoided.
-
[0087]
Referring specifically to Fig. 15, another method of forming an integral three-dimensional object from lamination: is illustrated. The method includes the steps of positioning a platform 234 under a station 236 for storing and supplying a powder material 238, depositing a quantity of the powder material 238 on the platform 234 to form a layer 240 of the powder material 238 of a predetermined thickness, compressing the layer 240 of the powder material 238 to cause the powder material to be formed into a coherent mass, heating at least a portion of the layer 240 of the powder material 238 to form an individually contoured lamination 242, and repeating the depositing, compressing and heating steps to form a plurality of individually contoured laminations (such as 242). With this method, the individually contoured laminations such as 242 are each integrally bonded to the next adjacent of the individually contoured laminations by the heating steps.
-
[0088]
Preferably, the method includes forming the individually contoured laminations such as 242 to a thickness substantially the same as the thickness of the layers such as 240. It also includes providing means for controlling the depositing, compressing and heating steps to provide the individually contoured laminations such as 242 for the three dimensional object to be formed thereby. It further includes entering data concerning the three-dimensional object into the controlling means and thereafter instructing the controlling means to cause the powder material 238 to be formed into the individually contoured laminations such as 242 for the three-dimensional object. More specifically, the controlling means preferably includes a computer assisted drafting station 244 for the data entering step and means 246 for transferring controlling signals therefrom.
-
[0089]
With reference to the apparatus and method illustrated in Figs. 15 and 16, the layers such as 240 of the powder material 238 are each of a thickness on the order of 0.002 to 0.020 inches (0,005-0,050 cm) after the compressing step. It will also be appreciated that the compressing step is performed either by the heated roller 218 (Fig. 16) or by a heated press platform 248 (Fig. 15). In either case, the heated portion of the layer 222 or 240 is heated by a computer interfaced laser scanner 210 or 250 adapted to integrally bond at least some of the powder material 204 or 238.
-
[0090]
In addition, it will be appreciated that the powder material remaining after formation of the three-dimensional object formed by the integrally bonded individually contoured laminations is removed. This can be done as illustrated in Fig. 16 by a "dumping" method or, alternatively, by subjecting the respective platforms 206 and 234 to vibrations and/or impact. In this manner, the non-sintered or non-melted powder surrounding the three-dimensional object and filling its holes and cavities is loosened and leaves the part.
-
[0091]
Finally, and referring to Fig. 15, the method can utilize metal, plastic or ceramic powder 238. The powder 238 flows out of the container 236 through sieve 252 and this deposition process can be enhanced by vibrating the container 236. Preferably, the platform 234 stays in this position until the powder layer 240 of desired thickness is deposited.
-
[0092]
As previously mentioned, the powder layer 222 or 240 is compressed by the action of the heated roller 218 or heated press platform 248. At this stage, some intermolecular bonds are formed and the powder layer 222 or 240 is attached to the platform 206 or 234 or to the next adjacent layer where one or more layers has already been formed. Although the bonds are fairly weak, the compressed powder 204 or 238 stays attached even if the platform 206 or 234 is turned upside-down.
-
[0093]
Referring to Fig. 15 in particular, the image of the cross-section 254 on the computer assisted drafting station 244 is rasterized by a computer. The geometrical information about the cross-section 254 is transmitted from the computer to the computer interfaced laser scanner 250 which scans the surface of the compressed powder 238 within the boundaries of the cross-section with a laser beam. Further, the laser beam is automatically focused on the surface of the cross-section, its energy is delivered in pulses (one pulse per raster dot), and the pulse energy is regulated in order to sinter or melt the material to the depth equal to the thickness of the cross-section.
-
[0094]
With reference to the description of Figs. 15 and 16, the apparatus can suitably become a computer peripheral for tool-less manufacturing of virtually any part that can be created on the computer screen. Although some secondary surface finishing of a three-dimensional object produced by the apparatus may be required, the apparatus results in an ideal method for near-net-shape manufacturing.
