This application is a continuation-in-part of U.S. application Ser. No. 10/273,691 filed Oct. 19, 2002, which is incorporated by reference herein in its entirety.

Referring now to the figures, which are exemplary embodiments and wherein the like elements are numbered alike:

[0011]FIG. 1 is a cross sectional view of a releasable fastening system;

[0012]FIG. 2 is a cross sectional view of the releasable fastening system of FIG. 2, wherein the releasable fastening system is engaged;

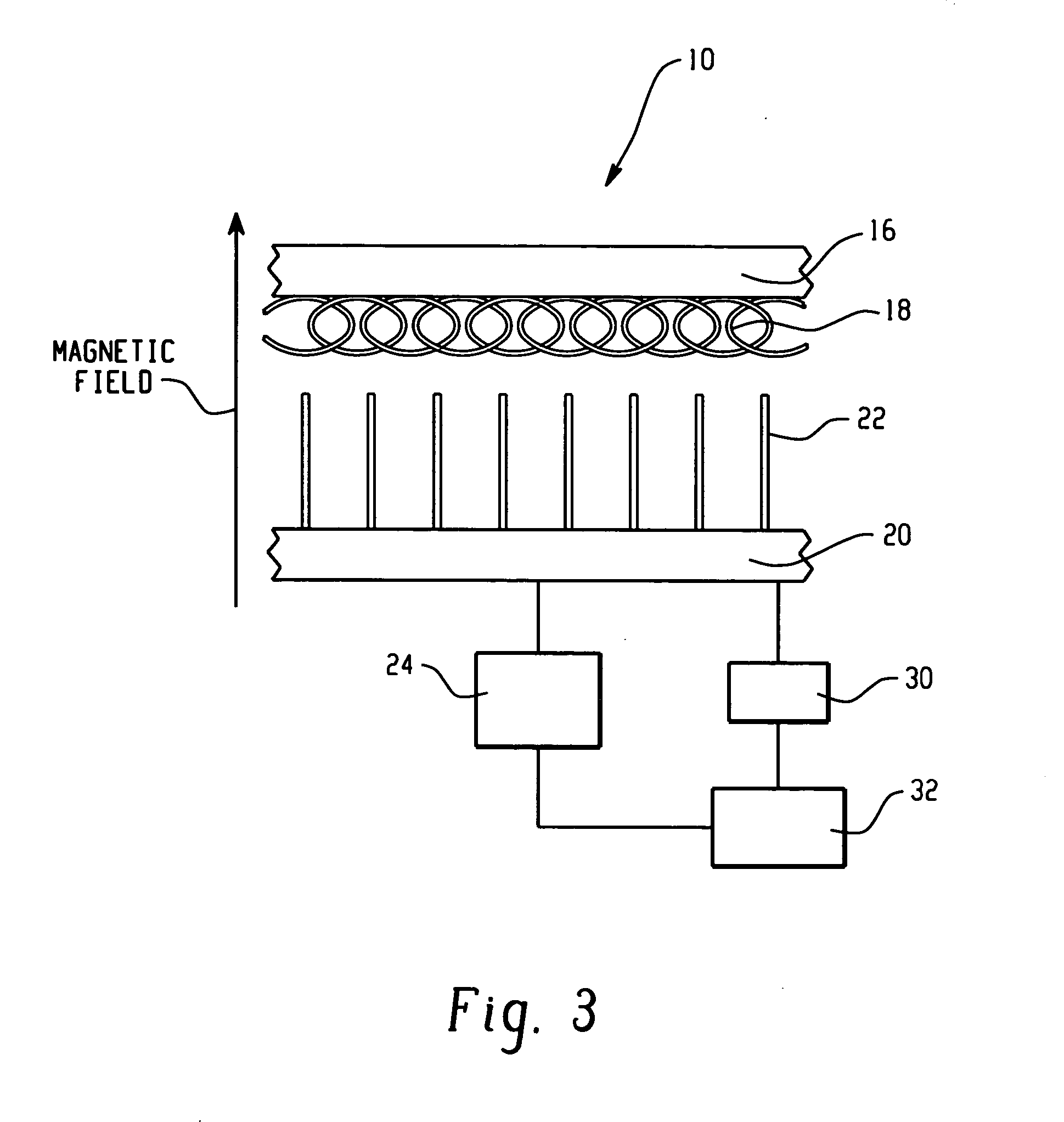

[0013]FIG. 3 is a cross sectional view of the releasable fastening system of FIG. 2, wherein the releasable fastening system is disengaged; and

[0014]FIG. 4 is a cross sectional view of an exemplary MR elastomer hook.

As shown in FIG. 1, a releasable fastener system, generally indicated as 10, comprises a loop portion 12 and a hook portion 14. The loop portion 12 includes a support 16 and a loop material 18 disposed on one side thereof whereas the hook portion 14 includes a support 20 and a plurality of closely spaced upstanding hook elements 22 extending from one side thereof. The hook elements 22 are formed of a magnetorheological elastomer that provides a shape changing and/or flexural modulus capability to the hook elements 22 as will be described in greater detail.

Coupled to and in operative communication with the hook elements 22 is an activation device 24. The activation device 24, on demand, provides a magnetic activation signal to the hook elements 22 to change the shape orientation and/or flexural modulus property of the hook elements 22. The change in shape orientation and/or flexural modulus property generally remains for the duration of the applied activation signal. Upon discontinuation of the magnetic activation signal, the hook elements 22 revert substantially to a relaxed or unpowered shape. The illustrated releasable fastener system 10 is exemplary only and is not intended to be limited to any particular shape, size, configuration, number or shape of hook elements 22, shape of loop material 18, or the like.

During engagement, the two portions 12 and 14 are pressed together to create a joint that is relatively strong in shear and pull-off directions, and weak in a peel direction. For example, when the two portions 12 and 14 are pressed into face-to-face engagement, the hook elements 22 become engaged with the loop material 18 and the close spacing of the hook elements 22 resists substantial lateral movement when subjected to shearing forces in the plane of engagement. Similarly, when the engaged joint is subjected to a force perpendicular to this plane, (i.e., pull-off forces), the hook elements 22 resist substantial separation of the two portions 12 and 14. However, when the hook elements 22 are subjected to a peeling force, the hook elements 22 can become disengaged from the loop material 18. It should be noted that separating the two portions 12 and 14 using the peeling force generally requires that one or both of the supports forming the hook portion and loop portion be flexible.

To reduce shear and pull-off forces resulting from the engagement, the shape orientation and/or flexural modulus of the hook elements 22 is altered upon receipt of the activation signal from the activation device 24 to provide a remote releasing mechanism of the engaged joint. As a result of changing the shape orientation and/or flexural modulus of the hook elements 22, a marked reduction in shear and pull-off forces is observed, thereby allowing the joint to separate in directions normally associated with pull-off and shear. That is, the change in shape orientation reduces the shearing forces in the plane of engagement, and reduces the pull-off forces perpendicular to the plane of engagement. For example, as shown in FIGS. 2 and 3, the plurality of hook elements 22 can have inverted J-shaped orientations that are changed, upon demand, to substantially straightened shape orientations upon receiving an activation signal from the activation device 24. The substantially straightened shape relative to the J-shaped orientation provides the joint with marked reductions in shear and pull-off forces.

In the alternative, to increase shear and pull-off forces resulting from the engagement, the shape orientation of the hook elements 22 is altered upon receipt of the activation signal from the activation device 24 to provide a remote mechanism of enhancing the engaged joint. As a result of changing the shape orientation and/or flexural modulus of the hook elements 22, a marked enhancement in shear and pull-off forces is observed, thereby increasing the force required to separate the joint in directions associated with pull-off and shear. That is, the change in shape orientation increases the shearing forces in the plane of engagement, and increases the pull-off forces perpendicular to the plane of engagement. For example, the plurality of hook elements can have inverted J-shaped orientations that are changed, upon demand, to hook elements having an increased flexural modulus (stiffness) upon receiving an activation signal from the activation device. The increased stiffness of the J-shaped hook relative to stiffness in the unpowered state provides the joint with marked increases in shear and pull-off forces. It will be understood that the magnetic field must be in an appropriate direction and of a sufficient strength to effectuate either a reduction in shear and pull-off forces or an increase in shear and pull-off forces.

In addition to providing a reduction or increase in shear and/or pull-off forces, the MR elastomer hook elements provide active damping capabilities to the fastener system. As shown in FIG. 1, a sensor device 30 is preferably attached to the hook support 20 and measures the vibrations occurring in the fastener system. Optionally, the sensor 30 may be attached to the loop support 16. The sensor 30 is in operative communication with a computer 32, which is in operative communication with the activation device 24. The computer 32 receives an input signal from the sensor 30, and then calculates the amount of damping required. The computer 32 then sends and output signal to the activation device 24, which provides a magnetic signal of the required strength, direction, and duration to the hook elements 22. The hook elements 22 in turn have an increase in flexural modulus in proportion to the strength of the magnetic signal. A continuously variable control of the flexural modulus of the hook elements allows for effective damping of the fastener system. An alternative fastener system can have the loop material 18 as well as the hook elements 22 fabricated from a MR elastomer to further increase the damping capabilities of the fastener system 10.

Referring now to FIG. 4, an exemplary magnetorheological hook 22 comprises an elastomeric material 26 and magnetic particulates 28 disposed within the elastomeric material 26. Preferably, the elastomeric material 26 employed is resilient and flexible.

The hook elements 22 may be formed integrally with support 20, or more preferably, may be attached to the support 20. In practice, spacing between adjacent hook elements 22 is an amount effective to provide sufficient damping properties and shear and pull-off resistance desired for the particular application during engagement with the loop material 18. Depending on the desired application, the damping or the amount of shear and pull-off force required for effective engagement can vary significantly. Generally, the closer the spacing and the greater the number of hook elements 22 employed will result in increased shear and pull-off forces upon engagement. The hook elements 22 preferably have a shape configured to become engaged with the loop material 18 upon pressing contact of the loop portion 12 with the hook portion 14, and vice versa. In this engaged mode, the hook elements 22 can have an inverted J-shaped orientation, an inverted L-shape, a mushroom shape, a knob shape, a multi-tined anchor, T-shape, spirals, or any other mechanical form of a hook-like element used for separable hook and loop fasteners. Such elements are referred to herein as “hook-like”, “hook-type”, or “hook” elements whether or not they are in the shape of a hook. Likewise, the loop material may comprise a plurality of loops or pile, a shape complementary to the hook element (e.g., a key and lock type engagement), or any other mechanical form of a loop-like element used for separable hook and loop fasteners.

Suitable MR elastomer materials include, but are not intended to be limited to, ferromagnetic or paramagnetic particulates suspended in an elastomeric polymer matrix. Suitable polymer matrices include, but are not limited to, poly-alpha-olefins, natural rubber, silicone, polybutadiene, polyethylene, polyisoprene, polyurethane, and the like.

Suitable ferromagnetic or paramagnetic particulates include compounds comprising oxides, chlorides, sulfates, sulfides, hydrates, and other organic or inorganic compounds of cerium, chromium, cobalt, dysprosium, erbium, europium, gadolinium, holmium, iron, manganese, neodymium, nickel, praesodymium, samarium, terbium, titanium, uranium, vanadium, and yttrium. Preferred particulates include alloys of iron, nickel, manganese, and cobalt, with or without other nonmagnetic elements; alloys of iron, nickel, manganese, and cobalt with gadolinium; and the like. Other preferred particulates include magnetite (Fe₃O₄) and other compounds of iron and oxygen, and a third metallic component.

The preferred particulates are nanoparticles. Suitable diameter sizes for the particulates can be less than or equal to about 500 nanometers, with less than or equal to about 250 nanometers preferred, and less than or equal to about 100 nanometers more preferred. Also preferred is a particulate diameter of greater than or equal to about 1.0 nanometer, with greater than or equal to about 10 nanometers more preferred, and greater than or equal to about 50 nanometers especially preferred. The particulates preferably have an aspect ratio of about 0.25 to about 4, where the aspect ratio is defined as the ratio of the length to the equivalent circular diameter. The particulates are preferably present in an amount between about 5 to about 50 percent by volume of the total MR elastomer composition. Alternatively, the particles can be larger, e.g., micron sized particles, to be effective in altering the modulus properties of the material in a magnetic field. However, the nanometer-sized particles are more preferred because the modulus properties of the particle/elastomer composite can be more readily tailored by the choice of particle size, particle size distribution and particle concentration when the nanometer-sized particles are used.

The MR elastomer can be formed into hook elements using techniques well known in the art, such as extrusion into fibers or rods, injection molding, compression molding, and the like.

The activation device 24 can be configured to deliver an activation signal to the hook elements 22, wherein the activation signal comprises a magnetic signal. The magnetic signal is preferably in the form of a magnetic field. The magnetic field may be generated by a permanent magnet, an electromagnet, or combinations of the foregoing. The strength and direction of the magnetic field employed is primarily dependent on the particular MR elastomer employed for fabricating the hook element and the use to which the assembly will be put. The magnitude and duration of the applied field strength preferred is an amount suitable to change a shape orientation and/or flexural modulus of the hooks to reduce or increase a shear force and/or pull-off force, as well as to provide variable damping properties to the engaged fastener system. A non-limiting example for reduction in shear force and/or pull-off force is a change in a hook shape from an inverted J-shaped orientation to a substantially straightened orientation (As shown in FIGS. 2 and 3). The magnitude of the applied field strength for damping properties varies depending upon the strength of the vibration being damped. A non-limiting example for damping is to increase the flexural modulus of the hook shape to substantially damp the vibration force(s) in the fastener system.

Suitable magnetic field strengths for the hook elements (or in the appropriate circumstance the loop elements) comprised of MR elastomers range from greater than about 0 to about 1 Tesla (T).

The loop material 18 generally comprises a random looped pattern or pile of a material. The loop material is often referred to as the “soft”, the “fuzzy”, the “pile”, the “female”, or the “carpet”. Suitable loop materials are commercially available under the trademark VELCRO from the Velcro Industries B.V. Materials suitable for manufacturing the loop material include metals, and thermoplastics such as polypropylene, polyethylene, polyamide, polyester, polystyrene, polyvinyl chloride, acetal, acrylic, polycarbonate, polyphenylene oxide, polyurethane, polysulfone, and the like. For added damping capabilities, the loop material may also comprise MR elastomers. The loop material 18 may be integrated with the support or may be attached to the support.

The supports 16 (loop portion 12) or 20 (hook portion 14) may be rigid or flexible depending on the intended application. Suitable materials for fabricating the support include plastics, fabrics, metals, and the like. For example, suitable plastics include thermoplastics such as for example polypropylene, polyethylene, polyamide, polyester, polystyrene, polyvinyl chloride, acetal, acrylic, polycarbonate, polyphenylene oxide, polyurethane, polysulfone, and other like thermoplastic polymers. An adhesive may be applied to the backside surface of the support (the surface free from the hook elements 22 or loop material) for application of the releasable fastener system to an apparatus or structure. Alternatively, the releasable fastener system 10 may be secured to an apparatus or structure by bolts, by welding, or any other mechanical securement means. It should be noted that, unlike traditional hook and loop fasteners, both supports 16 and 20 could be fabricated from a rigid or inflexible material in view of the remote releasing capability provided. Traditional hook and loop fasteners typically require at least one support to be flexible so that a peeling force can be applied for separation of the hook and loop fastener.

The support 20 may also comprise the activation device 24 for providing the activating signal to the hook elements. For example, the support 20 may be an electromagnet for providing a magnetic signal.

In one embodiment, the flexural modulus property of the hook elements 22, in the absence of a magnetic signal, is preferably unable to maintain a given load and cannot form an engaged fastener system. By applying a magnetic signal to the hook elements, the flexural modulus property of the hook elements 22 would be sufficient to maintain the fastener system in an engaged position, and therefore maintain the load. Upon removal of the magnetic signal, the releasable fastener system disengages due to the decrease in the flexural modulus property of the hook elements. Thus, in this embodiment, the degree of attachment force can be controlled by the applied magnetic field strength. In addition to the hold characteristics, the flexural modulus of the hook elements can variably changed to provide damping properties to the fastener system and still maintain engagement.

In another embodiment, the flexural modulus property of the hook elements 22, in the absence of a magnetic signal, is preferably able to maintain a given load when the fastener is engaged, as well as to provide variable damping capabilities. In the presence of a sufficiently high magnetic field, the flexural modulus property of the hook elements 22 increases resulting in hook elements 22 prone to brittle fracture when subjected to a high shear force. In this embodiment, controlling the fracture stiffness of the joint can control the breakaway shear force in the engaged fastener system joint. The fracture stiffness of the joint is in turn controlled by the applied magnetic field strength.

It will be appreciated that any number of different products or structural elements can be disassembled and damped using these techniques. In a particularly preferred application, the attachment is an engine mount between a vehicle frame and an engine, which is selectively releasable during a catastrophic event, such as a collision or impact. The release could occur, for example, either by reducing the shear and/or pull-off force, or increasing the flexural modulus of the hook elements to break away through brittle fracture of the hook elements. Prior to disassembly on demand, varying the flexural modulus of the hook elements provides active damping of vibrations.

While the disclosure has been described with reference to an exemplary embodiment, it will be understood by those skilled in the art that various changes may be made and equivalents may be substituted for elements thereof without departing from the scope of the disclosure. In addition, many modifications may be made to adapt a particular situation or material to the teachings of the disclosure without departing from the essential scope thereof. Therefore, it is intended that the disclosure not be limited to the particular embodiment disclosed as the best mode contemplated for carrying out this disclosure, but that the disclosure will include all embodiments falling within the scope of the appended claims.
