class com.google.ads.studio.video.VideoPlayerAdvanced

Extends com.google.ads.studio:EnabledComponent

Video Player Advanced component that enables the user to play one or more videos that get tracked. This component is a wrapper for the Playlist class that offers settings that can be managed in DART.

For more information, see Video Player Advanced.

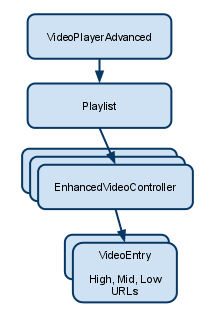

The following diagram details the Video Player Advanced architecture:

Control the current video:

   import com.google.ads.studio.HtmlEnabler;
   import com.google.ads.studio.events.StudioEvent;
   import com.google.ads.studio.events.StudioVideoEvent;
   import flash.events.MouseEvent;

   HtmlEnabler.getInstance().init(this);

   videoPlayer.addEventListener(
       StudioVideoEvent.STATE_CHANGE,
       function (event:StudioVideoEvent):void {
         if (videoPlayer.isVideoStopped()) {
           postVideoAnimation.play();
         } else {
           postVideoAnimation.gotoAndStop(1);
         }
       });

   // The following listeners are for instances of buttons on the stage.
   playBtn.addEventListener(
       MouseEvent.CLICK,
       function (event:MouseEvent):void {
         videoPlayer.play();
       });

   pauseBtn.addEventListener(
       MouseEvent.CLICK,
       function (event:MouseEvent):void {
         videoPlayer.pause();
       });

   stopBtn.addEventListener(
       MouseEvent.CLICK,
       function (event:MouseEvent):void {
         videoPlayer.stop();
       });

   muteBtn.addEventListener(
       MouseEvent.CLICK,
       function (event:MouseEvent):void {
         videoPlayer.mute();
       });

   unmuteBtn.addEventListener(
       MouseEvent.CLICK,
       function (event:MouseEvent):void {
         videoPlayer.unmute();
       });

   seekNearEndBtn.addEventListener(
       MouseEvent.CLICK,
       function (event:MouseEvent):void {
         videoPlayer.seek(
             videoPlayer.getTotalSeconds() - 5);
       });

   function setCurrentVideoLabel():void {
     videoNumberTxt.text = (videoPlayer.getCurrentVideoIndex() + 1) + " / " +
         videoPlayer.getNumberOfVideos();
   }

   videoPlayer.addEventListener(
       StudioEvent.INIT,
       function (event:StudioEvent):void {
         // Gets dispatched after component has read its properties
         // and created videos entries.
         setCurrentVideoLabel();
       });

   videoPlayer.addEventListener(
       StudioEvent.UPDATE,
       function (event:StudioEvent):void {
         // Gets dispatched when video is changed.
         setCurrentVideoLabel();
       });

   previousBtn.addEventListener(
       MouseEvent.CLICK,
       function (event:MouseEvent):void {
         videoPlayer.previous();
       });

   nextBtn.addEventListener(
       MouseEvent.CLICK,
       function (event:MouseEvent):void {
         videoPlayer.next();
       });

Advanced Usage:

You can programmatically set the reporting identifier and URL of a video. This is supported only before the video controller attempts the load. For immediate play, set the player to "wait for command" and then use the API to start playing after you have finished setting the new values.

   // Make sure the video player is set to wait for command.

   import com.google.ads.studio.video.EnhancedVideoController;

   // Get a reference to the current video.
   var videoController:EnhancedVideoController =
       videoPlayer.getCurrentVideoController();

   // Set the reporting identifier.
   videoController.setReportingIdentifier("new identifier");

   // Drill down to the first set of URL entries and set the high URL.
   videoController.getVideoEntries()[0].setHigh("newVideo.flv");

   // Kick off and start playing.
   videoPlayer.getPlaylist().start(true); // trackAsAutoPlay

Add an additional playlist item:

   import com.google.ads.studio.video.EnhancedVideoController;
   import com.google.ads.studio.video.VideoEntry;

   // Create the new video item.
   var videoController:EnhancedVideoController =
       new EnhancedVideoController();
   // Set the reporting identifier.
   videoController.setReportingIdentifier("new identifier");

   // Create a set of URL entries.
   var videoEntry:VideoEntry =
       new VideoEntry("high.flv", "mid.flv", "low.flv");

   // Attach the URL entries to the video item.
   videoController.addVideoEntry(videoEntry);
   // Add the video item to the end of the playlist.
   videoPlayer.getPlaylist().addVideoController(videoController);
   // Start the playlist.
   videoPlayer.getPlaylist().start(true); // trackAsAutoPlay

Events

Name Type Description

BACKWARDS_SEEK

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var videoBackwardsSeekHandler:Function = function(
       event:StudioVideoEvent):void {
     trace("Video seeks backward.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.BACKWARDS_SEEK,
       videoBackwardsSeekHandler);

BUFFERED

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var videoBufferedHandler:Function = function(event:StudioVideoEvent):void {
     trace("Video has buffered.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.BUFFERED,
       videoBufferedHandler);

COMPLETE

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var videoCompleteHandler:Function = function(
       event:StudioVideoEvent):void {
     trace("Video completes playing.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.COMPLETE,
       videoCompleteHandler);

CONNECTION_ERROR

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var videoConnectionErrorHandler:Function = function(
       event:StudioVideoEvent):void {
     trace("Error connecting to video.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.CONNECTION_ERROR,
       videoConnectionErrorHandler);

FAIL

com.google.ads.studio.events.StudioEvent

Dispatched when the component has failed to initialize.

FIRST_QUARTILE

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var videoFirstQuartileHandler:Function = function(
       event:StudioVideoEvent):void {
     trace("Video has reached first quartile.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.FIRST_QUARTILE,
       videoFirstQuartileHandler);

INIT

com.google.ads.studio.events.StudioEvent

Dispatched when the component has initialized.

This event may fire almost immediately after component construction. To ensure capturing the initialized state please refer to the example:

   // Note the variable component refers to the component instance.
   import com.google.ads.studio.events.StudioEvent;

   var initializedHandler:Function = function(
       event:StudioEvent = null):void {
     trace("The component initialized!");
   };

   if (component.isInitialized()) {
     initializedHandler();
   } else {
     component.addEventListener(StudioEvent.INIT, initializedHandler);
   }

MID_POINT

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var videoMidpointHandler:Function = function(
       event:StudioVideoEvent):void {
     trace("Video has reached midpoint.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.MID_POINT,
       videoMidpointHandler);

MUTE

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var videoMuteHandler:Function = function(event:StudioVideoEvent):void {
     trace("Video mutes.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.MUTE,
       videoMuteHandler);

NETSTREAM_BUFFER_EMPTY

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var netStreamBufferEmptyHandler:Function = function(
       event:StudioVideoEvent):void {
     trace("Net stream buffer is empty.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.NETSTREAM_BUFFER_EMPTY,
       netStreamBufferEmptyHandler);

NETSTREAM_BUFFER_FULL

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var netStreamBufferFullHandler:Function = function(
       event:StudioVideoEvent):void {
     trace("Net stream buffer is full.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.NETSTREAM_BUFFER_FULL,
       netStreamBufferFullHandler);

NETSTREAM_PLAY_START

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var netStreamPlayStartHandler:Function = function(
       event:StudioVideoEvent):void {
     trace("Net stream starts playing.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.NETSTREAM_PLAY_START,
       netStreamPlayStartHandler);

NETSTREAM_PLAY_STREAMNOTFOUND

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var netStreamNotFoundHandler:Function = function(
       event:StudioVideoEvent):void {
     trace("Can't find net stream.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.NETSTREAM_PLAY_STREAMNOTFOUND,
       netStreamNotFoundHandler);

NET_CONNECTION_AVAILABLE

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var netConnectionAvailableHandler:Function = function(
       event:StudioVideoEvent):void {
     trace("Net connection is available.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.NET_CONNECTION_AVAILABLE,
       netConnectionAvailableHandler);

NET_CONNECTION_PREINITIALIZE

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var netConnectionPreinitializeHandler:Function = function(
       event:StudioVideoEvent):void {
     trace("Net connection is pre-initialized.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.NET_CONNECTION_PREINITIALIZE,
       netConnectionPreinitializeHandler);

NET_CONNECTION_STATUS

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var netConnectionStatusHandler:Function = function(
       event:StudioVideoEvent):void {
     trace("Net connection status code is " + event.info.code + ".");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.NET_CONNECTION_STATUS,
       netConnectionStatusHandler);

NET_STREAM_AVAILABLE

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var netStreamAvailableHandler:Function = function(
       event:StudioVideoEvent):void {
     trace("Net stream is available.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.NET_STREAM_AVAILABLE,
       netStreamAvailableHandler);

NET_STREAM_CUE_POINT com.google.ads.studio.events.StudioVideoEvent

NET_STREAM_META_DATA

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var netStreamMetaHandler:Function = function(
       event:StudioVideoEvent):void {
     trace("Net Stream Meta Data width is " + event.info.width +
         ", and height is " + event.info.height + ".");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.NET_STREAM_META_DATA,
       netStreamMetaHandler);

NET_STREAM_PREINITIALIZE

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var netStreamPreInitializeHandler:Function = function(
       event:StudioVideoEvent):void {
     trace("Net stream is pre-initialized.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.NET_STREAM_PREINITIALIZE,
       netStreamPreInitializeHandler);

NET_STREAM_STATUS

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var netStreamStatusHandler:Function = function(
       event:StudioVideoEvent):void {
     trace("Net stream status code is " + event.info.code + ".");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.NET_STREAM_STATUS,
       netStreamStatusHandler);

PAUSE

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var videoPauseHandler:Function = function(event:StudioVideoEvent):void {
     trace("Video pauses.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.PAUSE,
       videoPauseHandler);

PLAY

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var videoPlayHandler:Function = function(event:StudioVideoEvent):void {
     trace("Video plays.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.PLAY,
       videoPlayHandler);

REPLAY

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var videoReplayHandler:Function = function(event:StudioVideoEvent):void {
     trace("Video replays.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.REPLAY,
       videoReplayHandler);

STATE_CHANGE

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var videoStateChangeHandler:Function = function(
       event:StudioVideoEvent):void {
     trace("Video state has changed.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.STATE_CHANGE,
       videoStateChangeHandler);

STOP

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var videoStopHandler:Function = function(event:StudioVideoEvent):void {
     trace("Video stops.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.STOP,
       videoStopHandler);

THIRD_QUARTILE

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var videoThirdQuartileHandler:Function = function(
       event:StudioVideoEvent):void {
     trace("Video has reached third quartile.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.THIRD_QUARTILE,
       videoThirdQuartileHandler);

UN_MUTE

com.google.ads.studio.events.StudioVideoEvent

   import com.google.ads.studio.events.StudioVideoEvent;

   var videoUnmuteHandler:Function = function(event:StudioVideoEvent):void {
     trace("Video unmutes.");
   };
   videoComponentInstance.addEventListener(
       StudioVideoEvent.UN_MUTE,
       videoUnmuteHandler);

UPDATE

com.google.ads.studio.events.StudioEvent

Dispatched when a new VideoController is being played.

The properties of the event object have the following values:

Property	Value
previousVideoController	The last VideoController.

   import com.google.ads.studio.events.StudioEvent;

   var videoUpdateHandler:Function = function(event:StudioEvent):void {
     trace("Video controller has changed.");
   };
   videoComponentInstance.addEventListener(
       StudioEvent.UPDATE,
       videoUpdateHandler);

Constructors

VideoPlayerAdvanced()
                    :
                    void

Instance Methods

Defined in: com.google.ads.studio:EnabledComponent

getEnabler()
                    :
                    Object

isInitialized()
                    :
                    Boolean

Returns whether the component has initialized.

Defined in com.google.ads.studio.video:VideoPlayerAdvanced

getCurrentVideoController()
                    :
                    EnhancedVideoController

Gets the current playing video controller.

getCurrentVideoIndex()
                    :
                    int

Gets the index of the current playing VideoController.

getElapsedSeconds()
                    :
                    Number

Returns the elapsed time in seconds of the current video controller.

getNumberOfVideos()
                    :
                    int

Gets the number of VideoControllers that have been added to the playlist.

getPercentLoaded()
                    :
                    Number

Indicates the percent of video loaded in the current video controller as a number between 0 and 1.

Note: Because streaming videos will only cache the number of seconds stated in the buffer length, it's more accurate for the user to believe that the entire video is loaded as they can seek to the non-cached portion of the video. Thus, this method will return 100% if the video is streaming. Also, if the content length header is missing from the HTTP response, bytesTotal will always be 0 so we assume the entire video has loaded and report 100%.

getPlaylist()
                    :
                    Playlist

Gets the playlist object.

getTotalSeconds()
                    :
                    Number

Returns the total duration in seconds of the current video. In order to get this value, you must wait for the StudioVideoEvent.DURATION event.

getVideoObject()
                    :
                    Video

Gets the video object.

isVideoMuted()
                    :
                    Boolean

Indicates whether the current video controller is muted.

isVideoPaused()
                    :
                    Boolean

Indicates whether the current video controller is paused.

isVideoPlaying()
                    :
                    Boolean

Indicates whether the current video controller is playing.

isVideoStopped()
                    :
                    Boolean

Indicates whether the current video controller is stopped or complete.

mute()
                    :
                    void

Mutes the current video controller.

next()
                    :
                    EnhancedVideoController

Goes to the next video (EnhancedVideoController) in the playlist or back to the first if the current video is the last in the playlist.

pause(alwaysPause:Boolean=false)
                    :
                    void

Pauses the current video controller.

play()
                    :
                    void

Plays the current video controller.

previous()
                    :
                    EnhancedVideoController

Goes to the previous video (EnhancedVideoController) in the playlist or to the last if the current video is the first in the playlist.

seek(time:Number)
                    :
                    void

Seeks the playhead to a particular time in seconds.

setCloseOnComplete(closeOnComplete:Boolean)
                    :
                    void

Sets whether the creative should close after a video in this VideoPlayer completes.

setPlaylist(playlist:
                            Playlist)
                    :
                    void

Sets the playlist object.

setPrimary(primary:Boolean)
                    :
                    void

Sets whether the videos in this VideoPlayer should be the primary videos.

setReportDuration(reportDuration:Boolean)
                    :
                    void

Sets whether the videos in this VideoPlayer should report their durations as the VPAID durations.

skipTo(index:int)
                    :
                    EnhancedVideoController

Skips directly to the index of one of the VideoControllers and starts playing it.

stop()
                    :
                    void

Stops the current video controller.

unload()
                    :
                    void

Unloads the player and preps it for garbage collection as well as possible.

     import com.google.ads.studio.video.EnhancedVideoController;

     // Get a reference to the current video.
     var videoController:EnhancedVideoController =
         videoComponentInstance.getCurrentVideoController();

     var endFrameClickHandler:Function = function(event:MouseEvent):void {
       videoController.unload();
     };
     endFrameButton.addEventListener(MouseEvent.CLICK, endFrameClickHandler);

unmute()
                    :
                    void

Unmutes the current video controller.

DoubleClick Studio AS3 API Reference

Advanced Usage:

Events

Constructors

Instance Methods

Defined in: com.google.ads.studio:EnabledComponent

Defined in com.google.ads.studio.video:VideoPlayerAdvanced

Arguments:

Arguments:

Arguments:

Arguments:

Arguments:

Arguments:

Arguments:
